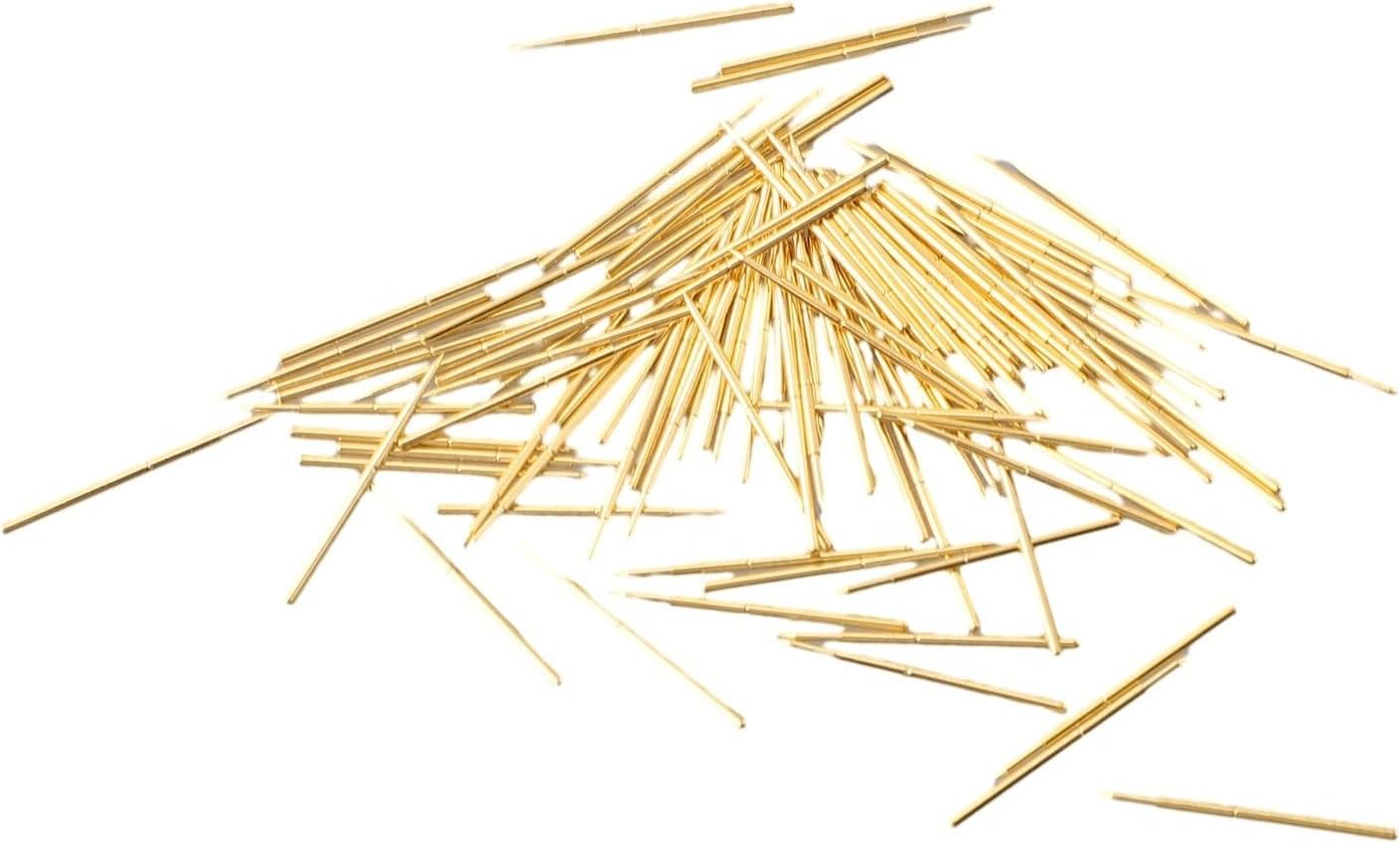

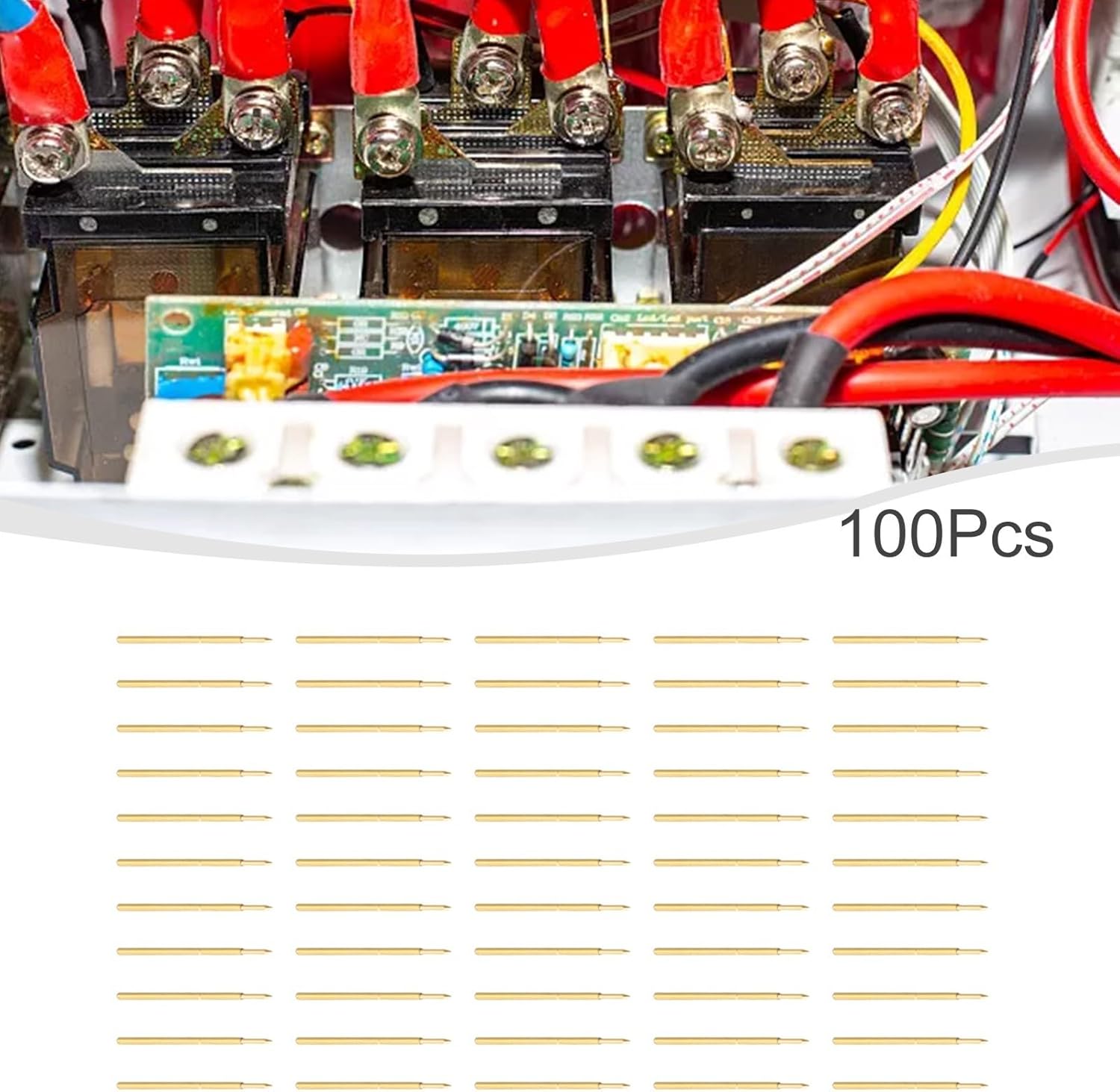

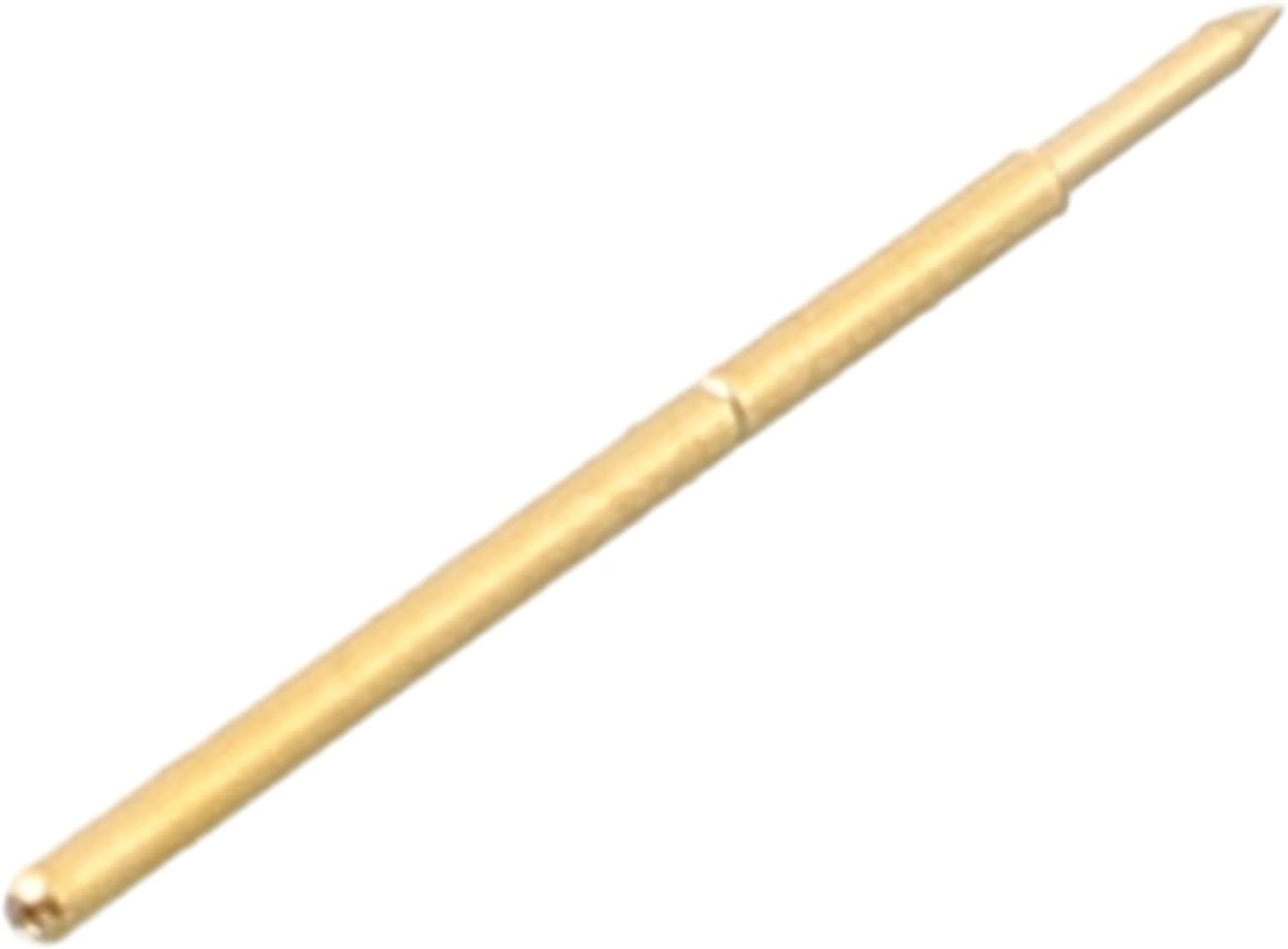

100pcs P50-B1 Spring Test Probe Pogo Pin Test Tools Dia 0.48mm Pointed Head 0.68mm Thimble Length 16.55mm PCB Testing Pin Spring Contact Probe(100-4W)

Features:* * Made of high-quality materials, heat-treated beryllium copper plunger, gold-plated phosphor bronze bar rel and gold-plated stainless steel wire spring, good contact and.* Essential component for PCB conductive testing to access components on printed circuit assemblies and test stability and durability.* Widely used for testing through-hole components, gold finger(edge connector) PCB and for pads.Specification:Model(optional): P50-B1, 75-B1, P100-B, P100-Q2, P125-H, R75-3S, 100-4W, R125-4S, GP-2Material:Needle tube: gold-plated brass tubeSpring: stainless steel wireCasing: Brass tube gold platedQuantity: 100pcsModel: P50-B1 probe 0.68mmRated current: 3AContact resistance: 50mΩProbe tube diameter: 0.68mmProbe diameter: 0.5mmDrilling size: 0.9mmMinimum test distance: 1.27mmModel: 75-B1 probe 1.0mmRated current: 3AContact resistance: 50mΩProbe tube diameter: 1.0mmProbe diameter: 0.68mmProbe length: 16.4mmDrilling size: 1.3-1.35mmMinimum test distance: 1.91mmModel: P100-B probe 1.36mmRated current: 3AContact resistance: 50mΩProbe tube diameter: 1.36mmProbe diameter: 1.5mmProbe length: 33.3mmDrilling size: 1.7mmMinimum test distance: 2.54mmModel: P100-Q2 probe 1.36mmRated current: 3AContact resistance: 50mΩProbe tube diameter: 1.36mmProbe diameter: 1.5mmProbe length: 33.3mmDrilling size: 1.7mmMinimum test distance: 2.54mmModel: P125-H probe 2.0mmRated current: 5AContact resistance: 50mΩProbe tube diameter: 2.0mmProbe diameter: 2.5mmProbe length: 33.3 mmDrilling size: 2.4mmMinimum test distance: 3.18mmModel: R75-3S probe cover, suitable for 1.0mm 75-B1 probeRated current: 3AContact resistance: 50mΩProbe sleeve diameter: 1.32mmTotal length: 17.2mmNeedle sleeve drilling size: 1.3-1.35mmCan be equipped with various head-type probes of the P75 series.Model: R100-4W probe sleeve, suitable for 1.36mm P100-B/Q2 probeRated current: 3AContact resistance: 50mΩProbe sleeve diameter: 1.67mmOverall length: 38.3mmProbe sleeve drilling size: 1.7mmCan be equipped with P100 series various head probes.Model: R125-4S probe cover, suitable for 2.0mm P125-H probeRated current: 5AContact resistance: 50mΩLength: 30mmDiameter: 2.36mmDrilling size: 2.4mmCan be equipped with various head-type probes of the P125 series.Model: GP-2 test needle umbrella cone head positioning column probeDrilling installation size: 5.0mm; Total length: 44mm;: 10.5mm Head height: 7.5mmPackage Included:100 x test probes

• [High Quality Materials]: This spring test probes made of high quality heat treated copper plunger, gold plated phosphor bronze and gold plated stainless steel wire spring, good and to use
• [High Performance]: Spring test probes are necessary parts for testing to access components on printed circuit assemblies, and test stability and durability; Cone shape head can be used for testing through-hole components
• [Specification]: Product Name : Spring Test Probe; P50-B1 - 16mm; Pin Centre: 0.68mm; Minimum test distance: 1.27mm; Spring Pressure: 75g; Full : 2.65mm; Current Rating: 3A; Current Resistance: 50mm
• [Great Replacement]: There are total 100 pieces spring test probes in set that you can use for a long , they are great replacement probes if you need to change your broken or old
• [Widely Application]: This spring prob is widely used in data communication equipment, receptacles, PC board, wire wrap, etc.
