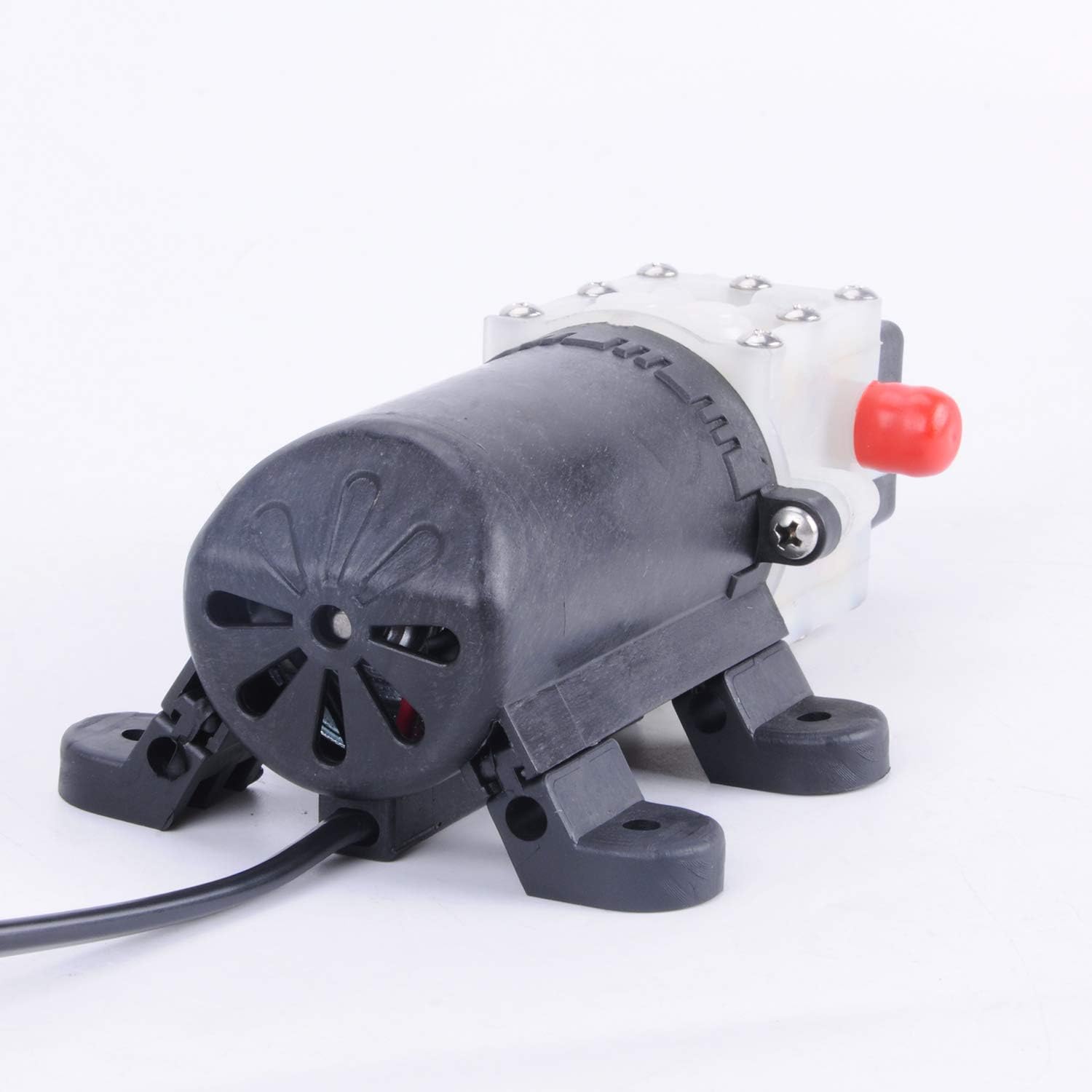

1.85L Overflow Pressure Backflow Straig 24V Diaphragm Water Pump

Description: Pump type and parameters: Pump type Voltage Max pressure Power Electric current Flow Size(shape) 2202 24V 0.55Mpa 30W 1.5A 1.85L/min 160×100×60mm A,Five features: 1.Big pressure:can reach 5-6Kg 2.Small power consumption:only 1.3-1.8A 3. Intelligence: excessive pressure backflow type and the pressure switch type. 4.Long life: motor life for more than five years. 5. Corrosion resisting: The using diaphragm’s size is composed of various import materials.Having oil resistance,heat resistance, weak acid resistance,weak base resistance, corrosion resistance,etc. D,Use methods: 1.The direction of arrow on the pump is water outlet. 2. The wire is no positive and negative poles. 3. Water pump can be placed in any direction. E,Notes: 1.Don’t soak in water. 2. Pressure adjustment screw can’t be adjusted random.The pressure has been adjusted before leaving factory,if adjust by yourself, it will be easy to up the pressure backflow and explode the exhalent siphon. 3.Water inlet must install filtering device,and can't go into the impurities.Otherwise, it will be easy to jam pump,and reduce pressure even no flow. F, Common fault and ruled out: 1. There is electricity, water pumps don't turn.Checking whether the wire behind the motor fall off. 2.Pump is turning and spraying,but fog quantity is small,the pressure reduced.Open the pump,checking whether there is trash material in pump chamber, and the motor bracket becomes flexible or not,and tighten the screws.Attention, Inlet and outlet water valve can’t be installed oppositely. 3.After using pump for years,pressure reduces and fog quantity is small.Open the pump,tighten the screws of the motor bracket;Exhange the direction of the small diaphragm’s fluctuation in the cavity of the body,or change the cutting disc. Package including: 1×Water Pump

• Working time:can work 2500 hours continuously
• Intelligence: excessive pressure backflow type and the pressure switch type
• Long life: motor life for more than five years
• Widely used in general industrial equipment, medical equipment, chemical equipment, agriculture(lawn and garden),tour vehicles, special-purpose vehicle,ships,drink,vehicles washing, carpet cleaning, ground cleaning, water purification and water treatment facilities
• Corrosion resisting: The using diaphragm’s size is composed of various import materials.Having oil resistance,heat resistance, weak acid resistance,weak base resistance, corrosion resistance,etc
