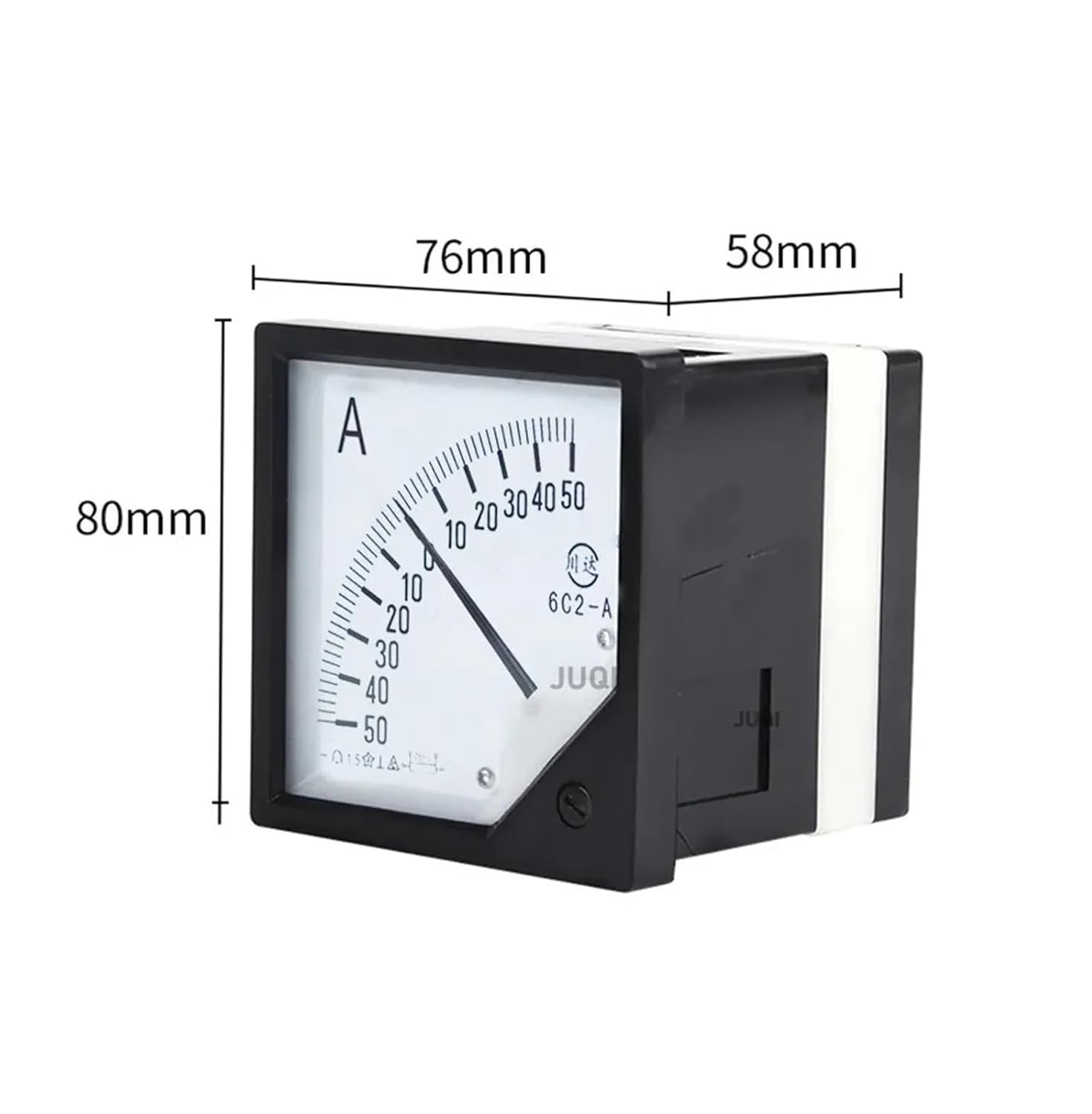

6C2-A DC /75mv Amperemeter Gauge Analog Panel AMP Current Meter 50A -0 - Ammeter 5A 10A 20A 30A 100A 200A 300A 500A(10A -0-10A)

Product details:1. Model: 6C2-A2. Color: Black3. Accuracy: 1.54. Size: 80 mm x 80 mm x76mm(L*H*W)5. Package:1*Analog Current Panel Meter.(with the mounting nut)6. Measuring Range: According to your choice.First. UseThis instrument is a switched magnetoelectric instrument, which is used for measurement of AC / DC current or voltage. The ambient temperature is -20 - +55°, and the relative humidity is not more than 96% (25).Two. SpecificationsThe Ammeter with 75mV in the option needs to be used together with the corresponding shuntThree. The main technical characteristics1. the damping time is less than 4S.2. Insulation strength: AC2000V (50HZ), 1 minutes.Four. Use of rules1. Work position: vertical.2. Instrument installation should be fastened, not loose or inclined.3. The current ratio of the external current transformer must be in line with the calibration ratio of the instrument, and the accuracy grade is matched.Notes:1. Please allowed 1-3mm differences due to m==========High-concerned chemical : NoneDimensions : 80 mm x 80 mmOperating Temperature : -20~40CentigradeSupply Voltage : DCAccuracy Class : 1.5Model Number : 6C2-ADisplay Type : Analog OnlyDIY Supplies : ElectricalOrigin : Mainland ChinaCertification : CEOutput current : 1A 3A 5A 10A 20A 30A 50A 100A 200A 500A
