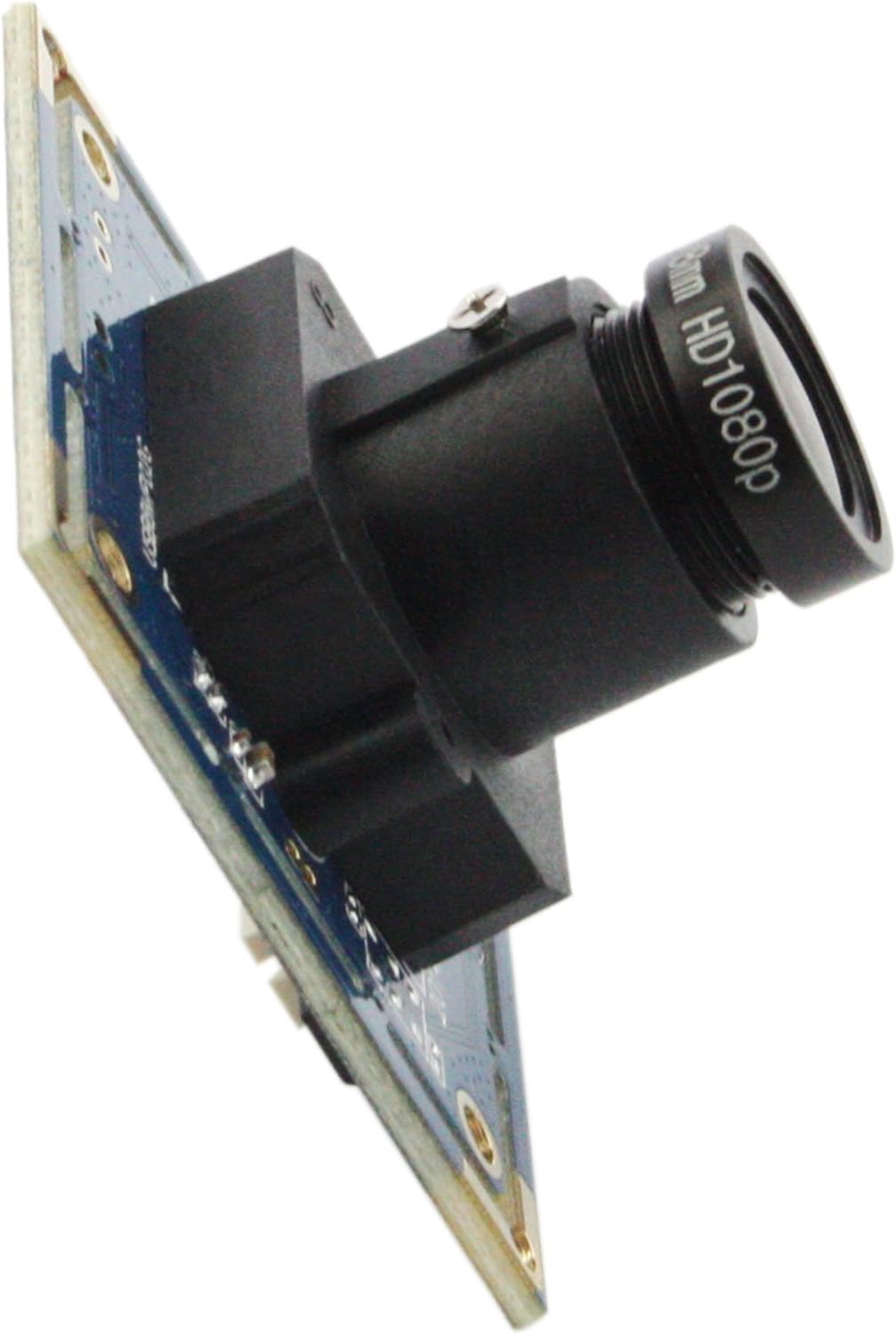

ELP 8mp usb Camera Module 2448p Webcam Board 2.8mm Wide Angle Lens Web Cam Smart Embedded Camera IMX179 4k usb webcam module,8megapixel HD Industrial Laptop USB Camera for Windows/Linux/Android/mas Os
Product details
| Management number | 216085989 | Release Date | 2026/04/19 | List Price | $23.20 | Model Number | 216085989 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
ELP HD 8Megapixel USB CMOS board camera module(model: ELP-USB800W02G serials) adopt Sensor Sony (1/3.2”) IMX179 is nice to used in Linux equipment, or those equipment which come with windows,linux,Android system etc. Specification: USB video camera Picture format MJPEG/YUY2 /USB Protocal USB2.0 HS/FS Auto exposure AEC Support/Auto white blance AEB Support Performance: 3264X2448 MJPEG 15fps YUY2 2fps/3200X2400 MJPEG 30fps YUY2 30fps 2592X1944 MJPEG 15fps YUY2 3fps/2048X1536 MJPEG 20fps YUY2 3fps 1600X1200 MJPEG 20fps YUY2 10fps/1280X960 MJPEG 20fps YUY2 10fps 1024X768 MJPEG 30fps YUY2 10fps/800X600 MJPEG 30fps YUY2 30fps 640X480 MJPEG 30fps YUY2 30fp Adjustable parameters Brightness/Contrast/Color saturation /Definition/Gamma/WB Night vision optional, can support IR Cut and IR board for IR night vision. voltage DC 5V/current 150mA/work temperature DEGREES(-20~70) Size: 38mm*38mm/32*32mm(other size cutomised) Support OS "WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later
- Model:ELP-USB800W02G-L28,HD Digital camera with 8megapixel super high resolution,max resolution:3264X2448,support 3264X2448@15fps,1600X1200@20fps,1024X768@30fps.high definition smart embedded web camera board can meet most capturing requirements,ELP 8mp usb camera module equipped with 1M usb cable.
- USB2.0 high speed output color cmos sensor for sharp image view:ELP 8mp usb camera module with 1/3.2 inch Sony IMX179 Image Sensor for sharp image monitoring. Brightness,contrast,hue,saturation,sharpness,gamma,white balance,exposure adjustable.ELP 2.8mm wide angle Hd 8megapixel Mjpeg 4k Camera USB Webcams for Company Industrial.
- 2.8mm wide angle lens: ELP mini 38*38mm/32*32mm 4k usb camera board with 2.8mm wide angle lens can be installed in most hidden and narrow position for a home surveillance system,wildlife photography,dash cam,baby camera, etc. High resolution for HD home security and HD industrial requirements,especially for medical auxiliary,etc.
- YUYV or MJPEG compression format optional, support IR Cut,Support UVC compliant,plug in and go,just connect the camera to PC,laptop,Android device or Raspberry Pi with the USB cable without extra drivers to be installed.Picture format MJPEG or YUY2 optional/USB Protocol USB2.0 HS/FS security camera.ELP 8.0 megapixel usb cameras with high resolution can be used in any video system for personal or industrial.
- Widely Application:ELP super small and mini size(38*38/32*32mm) 8mp usb camera module for your embedded applications.Compact high resolution 4k camera module for all kinds of machine vision,video conference,home video surveillance system,security camera system,dash cam,monitoring 3D printer,baby pet camera,robot machine vision,bank security,ATM,robot.
| Brand | ELP |
|---|---|
| Color | Black, Blue |
| Features | Night Vision |
| Lens Type | Wide Angle |
| Focus Type | Fixed Focus |
| Model Name | ELP-USB8MP02G-L180 |
| File Format | M-JPEG |
| Form Factor | Compact |
| Screen Size | 3.2 Inches |
| Sensor Type | CMOS |
| Manufacturer | Ailipu Technology Co., Ltd |
| Model Number | LYSB01HD1V4VC-ELECTRNCS |
| BuiltIn Media | USB Cable |
| Camcorder Type | Video Camera |
| Shooting Modes | Night |
| Antenna Location | industrial and personal use, including home security, wildlife observation, transportation safety, baby monitoring, machine vision, video conferencing, security systems, 3D printer monitoring, financial institution security, and pet monitoring |
| Maximum Aperture | 1.2 f |
| Operating System | Windows/Linux/Android |
| Video Resolution | 480p |
| Flash Memory Type | Micro SD |
| Compatible Devices | PC, laptop, Android device, Raspberry Pi |
| Image Aspect Ratio | 4:3 |
| Image stabilization | Digital |
| Maximum Focal Length | 300000 Millimeters |
| Minimum Focal Length | 2.8 Millimeters |
| Video Capture Format | MJPEG |
| Exposure Control Type | Automatic |
| Are Batteries Included | No |
| Supported Image Format | MJPEG, YUY2 |
| Water Resistance Level | Not Water Resistant |
| White Balance Settings | Auto |
| Connectivity Technology | USB |
| Has Image Stabilization | No |
| Upper Temperature Rating | 70 Degrees Celsius |
| Effective Still Resolution | 8 MP |
| Effective Video Resolution | 8 MP |
| Flash Memory Video Speed Class | V30 |
| Flash Memory Bus Interface Type | SD |
