Seetronic SAC3FCA Lockable 3-Pin Power-in Connector | 20A Indoor Powercon Plug for Stage Lighting, Sound Consoles, LED Panels, Power Amplifiers, Audio Racks, and AV Equipment (Blue, Male, 4PC)
Product details
| Management number | 213581003 | Release Date | 2026/04/12 | List Price | $14.00 | Model Number | 213581003 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- [𝗛𝗶𝗴𝗵-𝗣𝗲𝗿𝗳𝗼𝗿𝗺𝗮𝗻𝗰𝗲 𝗟𝗼𝗰𝗸𝗮𝗯𝗹𝗲 𝗖𝗼𝗻𝗻𝗲𝗰𝘁𝗼𝗿]: The Seetronic SAC3FCA is a lockable 3-pin power-in connector designed for secure indoor AC power transfer in professional audio, lighting, and AV setups. Rated for 20A at 250V AC, it delivers a dependable connection for stage lighting, sound consoles, LED panels, power amplifiers, and audio racks. Compatible with SAC3MCA, SAC3MPA, and SAC3MPA-M, it offers a firm latch locking system to prevent accidental disconnection during critical live events and demanding applications.

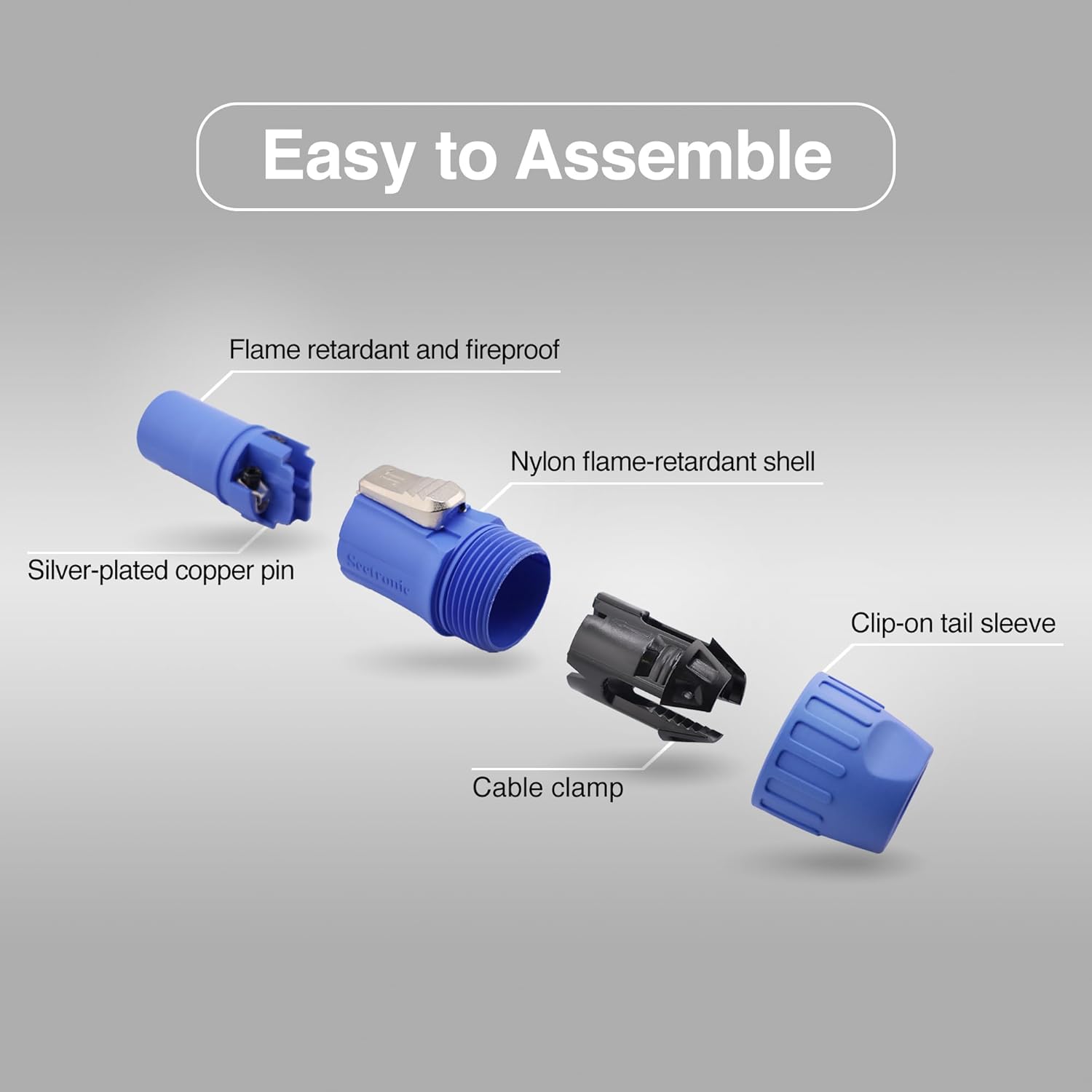

- [𝗣𝗿𝗲𝗺𝗶𝘂𝗺 𝗕𝘂𝗶𝗹𝗱 & 𝗖𝗲𝗿𝘁𝗶𝗳𝗶𝗲𝗱 𝗦𝗮𝗳𝗲𝘁𝘆]: Built with a durable PA housing and copper alloy contacts plated with silver for enhanced conductivity, this connector ensures excellent performance over time. The SAC3FCA meets UL1977, IEC61984, IEC60320-1, and GB/T 34989 standards, carrying UL, VDE, TUV, and CQC certifications. Flame retardant to UL94-V0 and designed to withstand temperatures from -30°C to +80°C, it provides safe, stable power delivery in demanding professional environments.
- [𝗥𝗲𝗹𝗶𝗮𝗯𝗹𝗲 𝗘𝗹𝗲𝗰𝘁𝗿𝗶𝗰𝗮𝗹 𝗦𝗽𝗲𝗰𝗶𝗳𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀]: Engineered for precision power transfer, the SAC3FCA features 3 contacts (line, neutral, PE) with a maximum contact resistance of just 5 mΩ. It supports a dielectric strength of 4000V DC and insulation resistance over 1000 MΩ, ensuring minimal loss and high reliability. These specifications make it ideal for audio/video installations, event production equipment, and professional lighting systems that require consistent, uninterrupted performance.
- [𝗟𝗼𝗻𝗴 𝗦𝗲𝗿𝘃𝗶𝗰𝗲 𝗟𝗶𝗳𝗲 & 𝗘𝗮𝘀𝘆 𝗜𝗻𝘀𝘁𝗮𝗹𝗹𝗮𝘁𝗶𝗼𝗻]: With a service life of over 1000 mating cycles, the SAC3FCA is built for repeated use in touring, studio, and stage environments. It accepts cables sized at 2.5 mm² (12 AWG) with an outer diameter of 8–12 mm and features screw-type terminals for secure wiring. Its quick locking mechanism allows fast setup and teardown, making it a trusted choice for AV technicians, stage crews, and rental companies seeking efficiency and reliability.

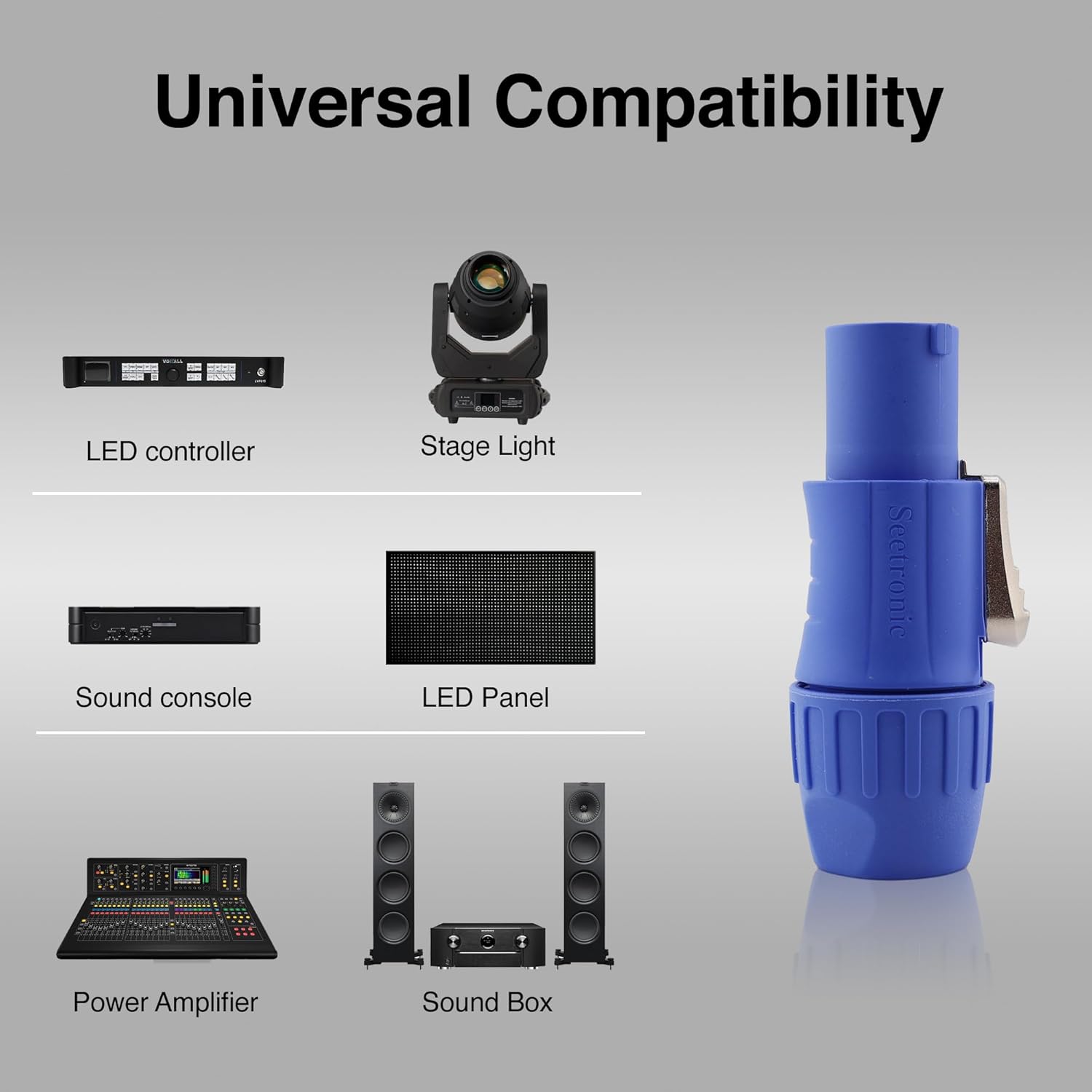

- [𝗩𝗲𝗿𝘀𝗮𝘁𝗶𝗹𝗲 𝗣𝗿𝗼𝗳𝗲𝘀𝘀𝗶𝗼𝗻𝗮𝗹 𝗔𝗽𝗽𝗹𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀]:This blue connector is widely used in stage lighting rigs, LED display panels, audio racks, power amplifiers, and sound reinforcement systems. Its compatibility with popular PowerCon standards makes it a reliable alternative to Neutrik PowerCon connectors. Ideal for fixed installations or mobile setups, it offers secure, high-current power input for any professional AV, event production, or broadcast environment requiring dependable power connectivity.
| UPC | 788362991050 |
|---|---|
| Color | SAC3FCA |
| Voltage | 250 Volts |
| Amperage | 20 Amps |
| Plug Type | Type B |
| Brand Name | AzarPixel |
| Manufacturer | Seetronic |
| Material Type | Copper |
| Product Grade | Industrial |
| Connector Type | 3-pin |
| Number Of Wires | 3 |
| Number of Poles | 3 |
| Specification Met | UL |
| Included Components | 4 SAC3FCA Power Connector |
| Item Dimensions D x W x H | 2.37"D x 1.07"W x 1.23"H |
